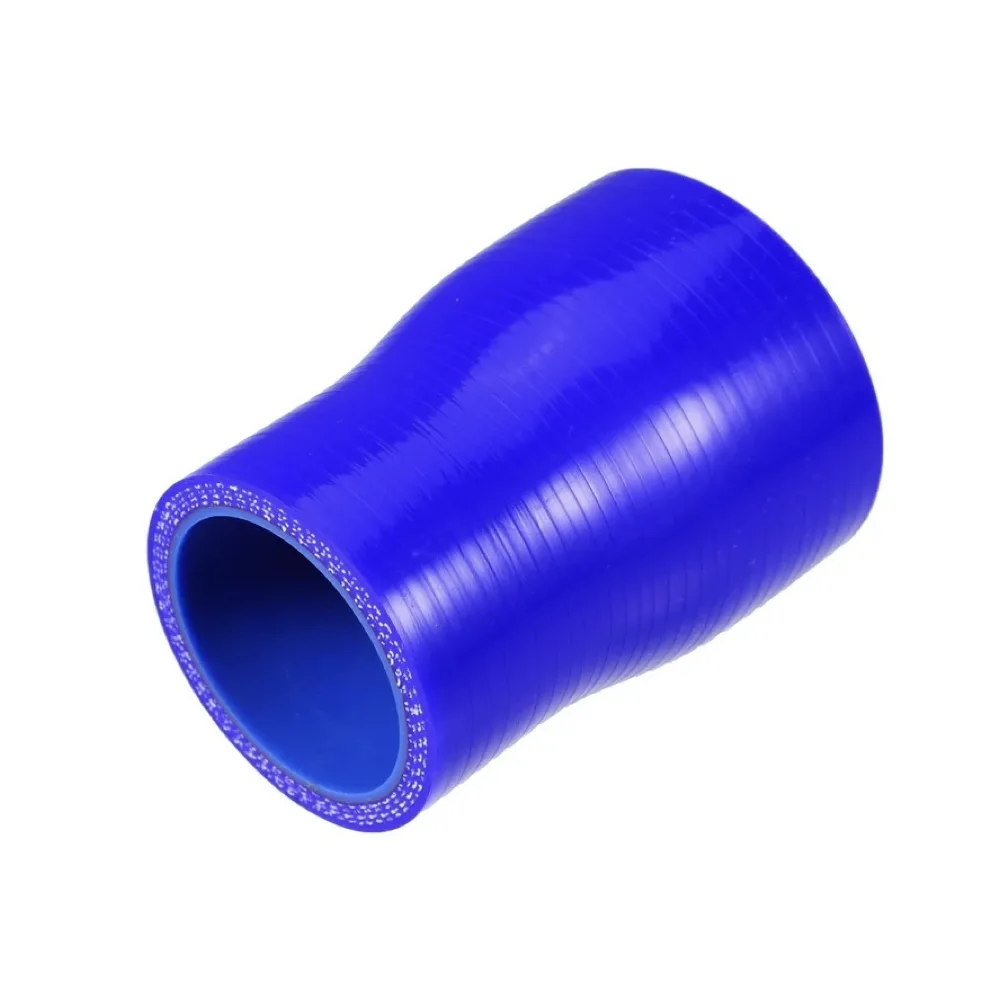

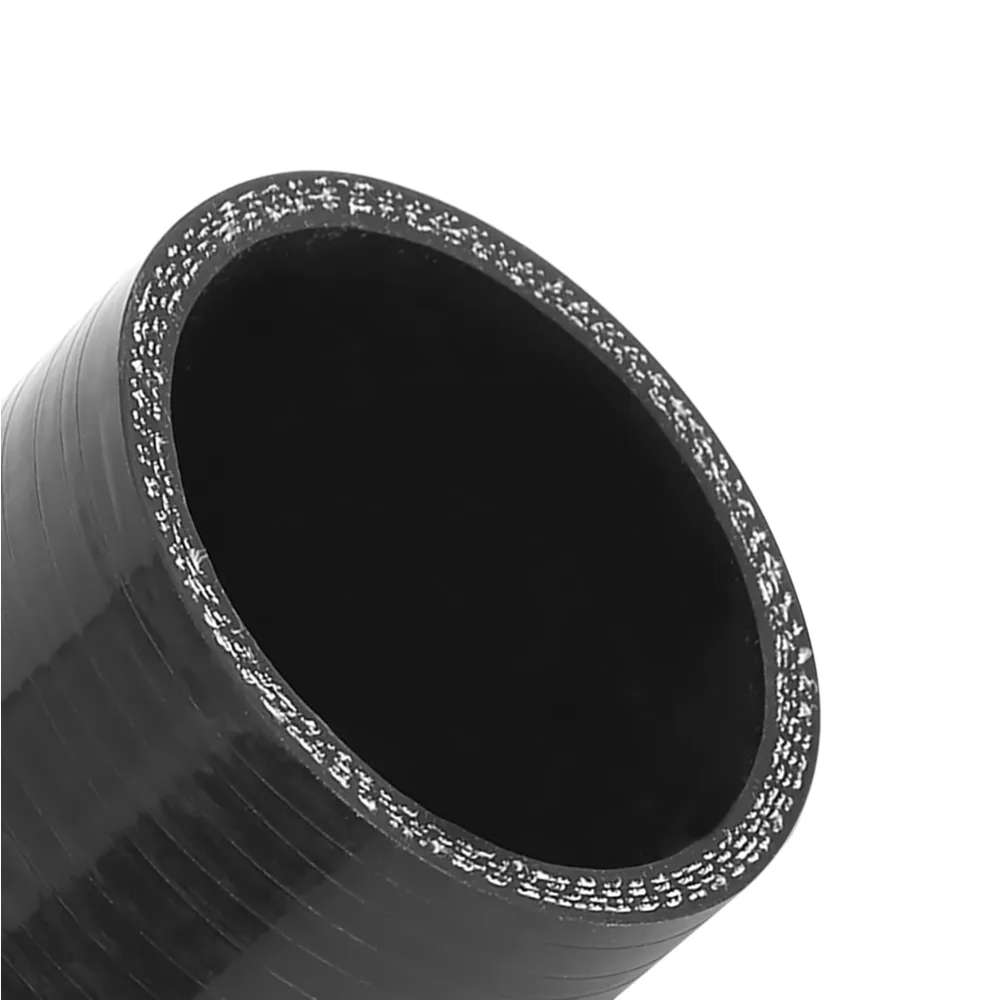

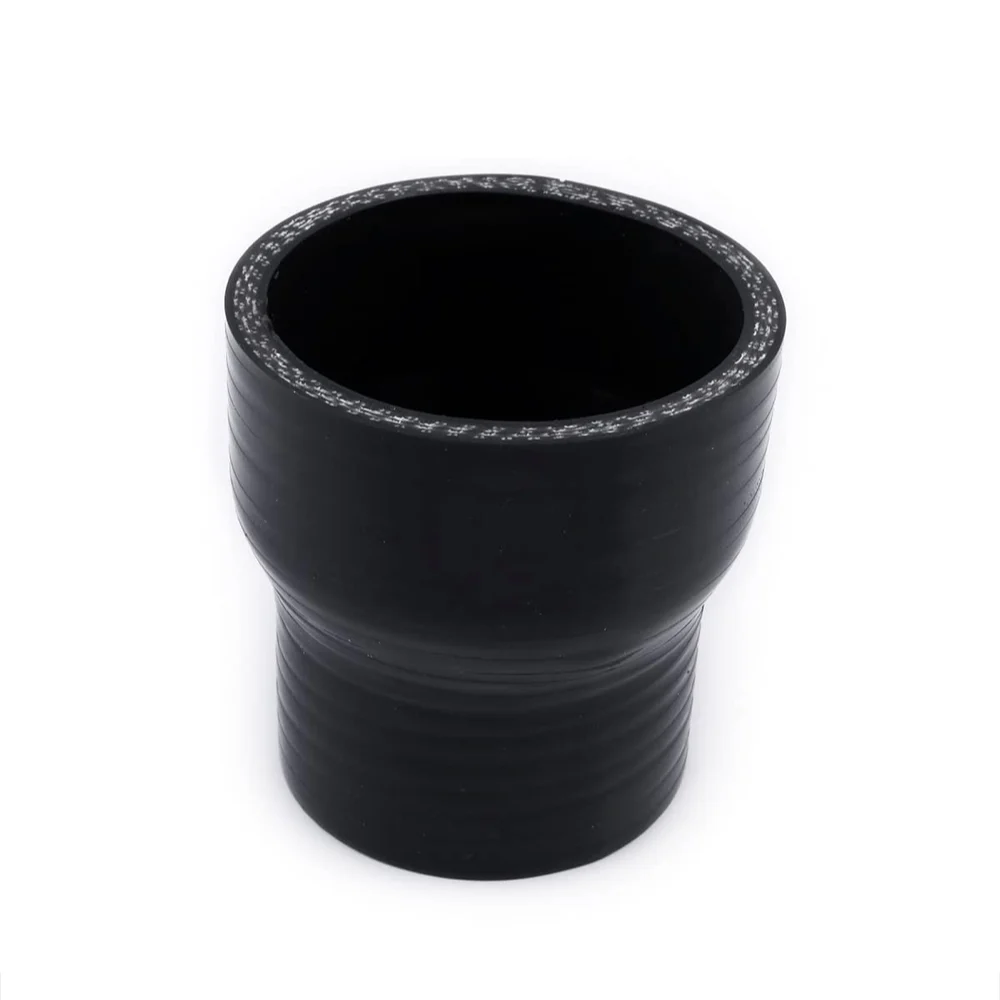

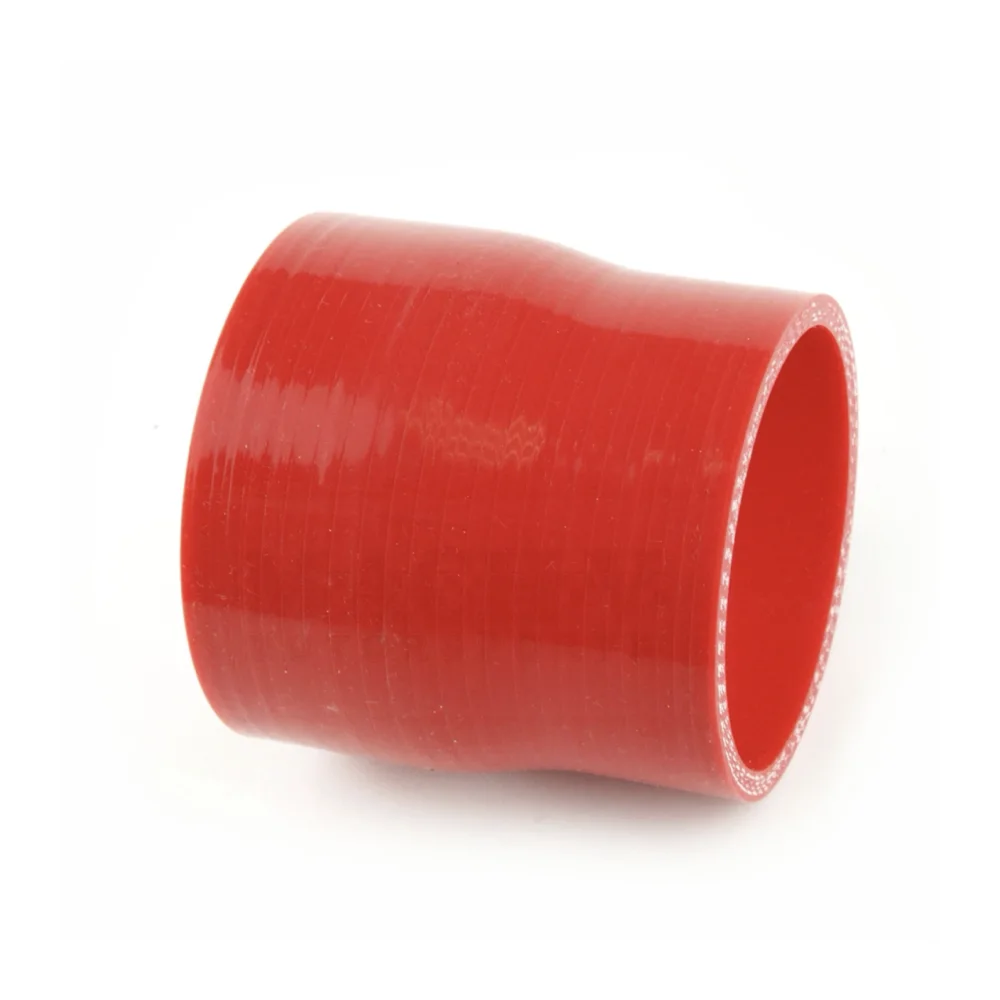

Straight Reducer Silicone Hose
|
Hose Specification Material ： Silicone with Polyester Reinforced |
|
|
Standard Colours |
Blue – Black – Red |
|
Special Colours |
Customizable |
|
Operating Temperatures |
-40 °C to +200 °C |
|
Wall Thickness |
3 Ply-4.5mm|4 Ply-5mm |
|
Length |
3 Ply-76mm 4 Ply-100mm |
| Part No. | ID (Mm) | ID (Inch) | Plys |
| SR-8-12 | 8 - 12 | 5/16"-1/2" | 3 |
| SR-10-21 | 10 - 21 | 3/8"-13/16" | 3 |
| SR-10-28 | 10 - 28 | 3/8"-1-1/8" | 3 |
| SR-13-25 | 13 - 25 | 1/2"-1" | 3 |
| SR-15-30 | 15 - 30 | 5/8"-1-3/16" | 3 |
| SR-16-25 | 16 - 25 | 5/8"- 1" | 3 |
| SR-19-22 | 19 - 22 | 3/4"- 7/8" | 3 |
| SR-19-25 | 19 - 25 | 3/4"- 1" | 3 |
| SR-19-32 | 19 - 32 | 3/4"- 1.25" | 3 |
| SR-19-35 | 19 - 35 | 3/4"- 1.35" | 3 |
| SR-19-45 | 19 - 45 | 3/4"- 1.75" | 3 |
| SR-20-35 | 20 - 35 | 3/4"- 1.35" | 3 |
| SR-25-28 | 25 - 28 | 1"- 1-1/8" | 3 |
| SR-25-32 | 25 - 32 | 1"- 1.25" | 3 |
| SR-25-35 | 25 - 35 | 1"- 1.35" | 3 |
| SR-25-38 | 25 - 38 | 1" - 1.5" | 3 |
| SR-25-40 | 25 - 40 | 1" - 1-9/16" | 3 |
| SR-25-45 | 25 - 45 | 1" - 1.75" | 3 |
| SR-28-35 | 28 - 35 | 1-1/8"- 1.35" | 3 |
| SR-28-38 | 28 - 38 | 1-1/8"- 1.5" | 3 |
| SR-32-35 | 32 - 35 | 1.25" - 1.35" | 3 |
| SR-32-40 | 32 - 40 | 1.25"- 1-9/16" | 3 |
| SR-32-51 | 32 - 51 | 1.25"- 2" | 3 |
| SR-33-38 | 33 - 38 | 1-5/16"- 1.5" | 3 |
| SR-33-51 | 33 - 51 | 1-5/16"- 2" | 3 |
| SR-33-63 | 33 - 63 | 1-5/16"- 2.5" | 3 |
| SR-33-76 | 33 - 76 | 1-5/16"- 3" | 3 |
| SR-34-45 | 34 - 45 | 1-5/16"- 1.75" | 3 |
| SR-35-38 | 35 - 38 | 1.35" - 1.5" | 3 |
| SR-35-40 | 35 - 40 | 1.35" - 1-9/16" | 3 |
| SR-38-44 | 38 - 44 | 1.5"- 1.75" | 3 |
| SR-38-48 | 38 - 48 | 1.5" - 1-7/8" | 3 |
| SR-38-51 | 38 - 51 | 1.5"- 2" | 3 |
| SR-38-57 | 38 - 57 | 1.5"- 2.25" | 3 |
| SR-38-63 | 38 - 63 | 1.5"- 2.5" | 3 |
| SR-40-50 | 40 - 50 | 1-9/16"- 2" | 3 |
| SR-41-63 | 41 - 63 | 1-1/8" - 2.5" | 3 |
| SR-42-36 | 42 - 36 | 1-5/8"- 1-3/8" | 3 |
| SR-42-48 | 42 - 48 | 1-5/8"- 1-7/8" | 3 |
| SR-45-51 | 45 - 51 | 1.75"- 2" | 3 |
| SR-45-54 | 45 - 54 | 1.75"- 2-1/8" | 3 |
| SR-45-57 | 45 - 57 | 1.75" - 2.25" | 3 |
| SR-45-60 | 45 - 60 | 1.75"- 2.36" | 3 |
| SR-45-63 | 45 - 63 | 1.75"- 2.5" | 3 |
| SR-45-76 | 45 - 76 | 1.75"- 3" | 3 |
| SR-48-51 | 48 - 51 | 1-7/8"- 2" | 3 |
| SR-51-54 | 51- 54 | 2" - 2-1/8" | 3 |
| SR-51-57 | 51- 57 | 2" - 2.25" | 3 |
| SR-51-60 | 51 - 60 | 2"- 2.36" | 3 |
| SR-51-63.5 | 51 - 63.5 | 2"- 2.5" | 3 |
| SR-51-70 | 51 - 70 | 2" - 2.75" | 3 |
| SR-51-76 | 51 - 76 | 2" - 3" | 3 |
| SR-51-83 | 51 - 83 | 2" - 3.25" | 3 |
| SR-51-89 | 51 - 89 | 2" - 3.5" | 3 |
| SR-51-102 | 51 - 102 | 2" - 4" | 4 |
| SR-54-57 | 54 - 57 | 2-1/8"- 2.25" | 3 |
| SR-54-70 | 54 - 70 | 2-1/8"- 2.75" | 3 |
| SR-55-60 | 55 - 60 | 2-3/16"- 2.36" | 3 |
| SR-55-64 | 55 - 64 | 2-3/16"- 2.5" | 3 |
| SR-56-66 | 56 - 66 | 2.2"- 2.6" | 3 |
| SR-57-60 | 57 - 60 | 2.25"- 2.36" | 3 |
| SR-57-63 | 57 - 63 | 2.25"- 2.5" | 3 |
| SR-57-70 | 57 - 70 | 2.25"- 2.75" | 3 |
| SR-57-76 | 57 - 76 | 2.25"- 3" | 3 |
| SR-57-83 | 57 - 83 | 2.25"- 3.25" | 3 |
| SR-57-89 | 57 - 89 | 2.25"- 3.5" | 3 |
| SR-60-63 | 60 - 63 | 2.36"- 2.5" | 3 |
| SR-60-70 | 60 - 70 | 2.36"- 2.75" | 3 |
| SR-60-76 | 60 - 76 | 2.36"- 3" | 3 |
| SR-60-78 | 60 - 78 | 2.36"- 3.1" | 3 |
| SR-60-80 | 60 - 80 | 2.36"- 3.15" | 3 |
| SR-63-68 | 63 - 68 | 2.5"- 2.68" | 3 |
| SR-63-70 | 63 - 70 | 2.5"- 2.75" | 3 |
| SR-63-73 | 63 - 73 | 2.5"- 2.87" | 3 |
| SR-63-76 | 63 - 76 | 2.5"- 3" | 3 |
| SR-63-80 | 63 - 80 | 2.5"- 3.15" | 3 |
| SR-63-83 | 63 - 83 | 2.5" - 3.25" | 3 |
| SR-63-85 | 63 - 85 | 2.5" - 3.35" | 3 |
| SR-63-89 | 63 - 89 | 2.5"- 3.5" | 3 |
| SR-63-93 | 63 - 93 | 2.5"- 3.65" | 3 |
| SR-63-102 | 63- 102 | 2.5" - 4" | 3 |
| SR-67-70 | 67 - 70 | 2.64"- 2.75" | 3 |
| SR-67-76 | 67 - 76 | 2.64"- 3" | 3 |
| SR-70-76 | 70 - 76 | 2.75"- 3" | 3 |
| SR-70-80 | 70 - 80 | 2.75" - 3.15" | 3 |
| SR-70-83 | 70 - 83 | 2.75" - 3.25" | 3 |
| SR-70-89 | 70- 89 | 2.75"- 3.5" | 3 |
| SR-70-93 | 70- 93 | 2.75"- 3.65" | 3 |
| SR-70-95 | 70- 95 | 2.75"- 3.75" | 3 |
| SR-70-102 | 70 - 102 | 2.75"- 4" | 4 |
| SR-73-83 | 73 - 83 | 2.87"- 3.25" | 3 |
| SR-76-80 | 76 - 80 | 3"- 3.15" | 3 |
| SR-76-83 | 76 - 84 | 3"- 3.25" | 3 |
| SR-76-89 | 76 - 89 | 3"- 3.5" | 3 |
| SR-76-93 | 76 - 93 | 3"- 3.65" | 3 |
| SR-76-95 | 76 - 95 | 3"- 3.75" | 3 |
| SR-76-102 | 76 - 102 | 3"- 4" | 4 |
| SR-76-114 | 76 - 114 | 3"- 4.5" | 4 |
| SR-80-84 | 80 - 84 | 3.15"- 3.25" | 3 |
| SR-80-89 | 80 - 89 | 3.15"- 3.5" | 3 |
| SR-80-102 | 80 - 102 | 3.15"- 4" | 4 |
| SR-83-89 | 83- 89 | 3.25"- 3.5" | 3 |
| SR-83-96 | 83- 96 | 3.25"- 3.75" | 3 |
| SR-83-102 | 83 - 102 | 3.25"- 4" | 4 |
| SR-89-95 | 89 - 95 | 3.5"- 3.75" | 3 |
| SR-89-102 | 89- 102 | 3.5"- 4" | 4 |
| SR-89-114 | 89 - 114 | 3.5"- 4.5" | 4 |
| SR-95-102 | 95 - 102 | 3.75"- 4" | 4 |
| SR-102-108 | 102 - 108 | 4"- 4.25" | 4 |
| SR-102-114 | 102 - 114 | 4"- 4.5" | 4 |
| SR-102-127 | 102 - 127 | 4"- 5" | 4 |
| SR-102-152 | 102 - 152 | 4"- 6" | 4 |
| SR-114-127 | 114 - 127 | 4.5"- 5" | 4 |
| SR-127-152 | 127 - 152 | 5"- 6" | 4 |
| SR-140-152 | 140 - 152 | 5.5"- 6" | 4 |
| SR-165-170 | 165 - 170 | 6.5"- 6.7" | 4 |
